Airport Container Dolly D10-500-DQ.LS
Robust and safe

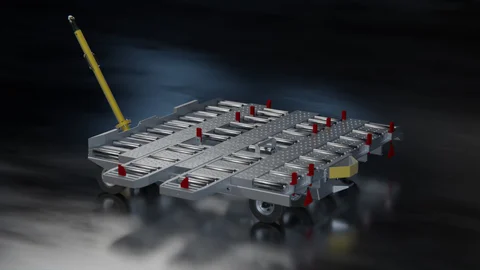

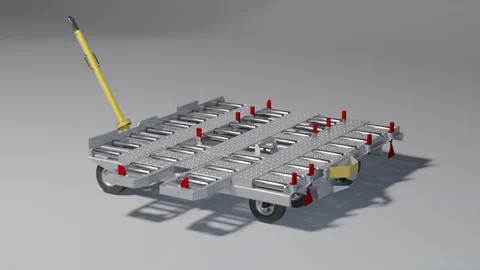

The Container Dolly D10-500-DQ.LS (Dolly KPA) was designed for transporting pallets and containers. The sturdy steel construction has a maximum permissible load of approx. 5000 kg. The entire loading area is equipped with 4 roller tracks and stops.
Furthermore, the dolly is functionally designed for one-man operation and can be pulled by a maximum of 4 people. It is also easy to repair and can be supplied galvanized or painted in RAL colors.
Technical data
| Total length (drawbar at top) | approx. 3400 mm |
| Total length (drawbar below) | approx. 4700 mm |
| Total width | approx. 3400 mm |
| Height | approx. 620 mm |
| Height (sideways)/top edge of carrying rollers | approx. 500 mm/ approx. 518 mm +/- 5 mm |
| Loading area (between stops) Length |
approx. 2510 mm |
| Width | approx. 3210 mm |
| Wheelbase | approx. 2000 mm |
| Ground clearance | approx. 170 mm |
| Turning circle diameter (outside) | approx. 9000 mm |
| max. driving speed | approx. 25 km/h |
| Payload | approx. 5000 kg |
| TARE | approx. 1350 kg |
